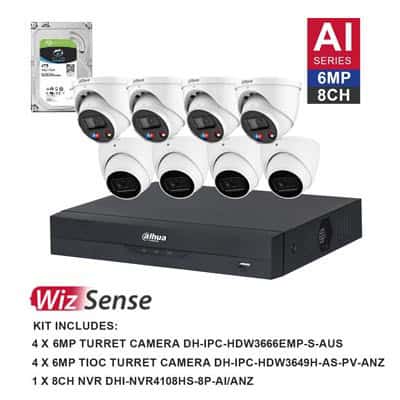

DAHUA NVR4108 4TB CCTV SURVEILLANCE KIT
KIT INCLUDES
• Dahua NVR4108 8CH NVR
• Seagate Skyhawk 4TB Hard Drive
• 4x Dahua IPC-HDW3666EMP-S-AUS 6MP Cameras 2.8mmm lens
• 4x Dahua IPC-HDW3649H-AS-PV-ANZ-S2 6MP Cameras 2.8mmm lens
NVR FEATURES
• H.265/H.264 codec decoding
• Max 80Mbps Incoming Bandwidth
• Up to 8MP Resolution for Preview and Playback
• HDMI/VGA simultaneous video output
• Supports IPC UPnP, 4PoE ports
• Supports ANR technology to enhance the storage reliability
• 3 Year Warranty
SPECIFICATIONS
| System | |
| Main Processor: | Quad-core embedded processor |
| Operating System: | Embedded LINUX |
| Display | |
| Interface: | 1 HDMI, 1 VGA |
| Resolution: | 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768 |
| Multi-screen Display: | 8CH: 1/4/8/9 |
| OSD: | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Video Detection | |
| Trigger Events: | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Video Detection: | Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering |
| Alarm input: | N/A |
| Relay Output: | N/A |
| Playback and Backup | |
| Playback: | 8CH: 1/4/8 |
| Search Mode: | Time /Date, MD and Exact Search. (accurate to second), Smart search |
| Playback Function: | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Zoom |
| Backup Mode: | USB Device/Network |
| Storage | |
| Internal HDD: | 1 SATA III Port, Up to 6 TB capacity for each HDD |
| HDD Mode: | Single |
| Auxiliary Interface | |
| USB: | 2 USB Ports (2 USB2.0) |
| Third-party Support | |
| Third-party Support: | Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more |
| Audio and Video | |
| IP Camera Input: | 8 Channel |
| Two-way Talk: | 1 Channel Input, 1 Channel Output, RCA |
| Recording | |
| Compression: | H.265/H.264 |
| Resolution: | 8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc. |
| Record Rate: | 80Mbps |
| Bit Rate: | 16Kbps ~ 20Mbps Per Channel |
| Record Mode: | Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop |
| Network | |
| Interface: | 1 RJ-45 Port (10/100Mbps) |
| Ethernet Port: | 1 Independent 100Mbps Ethernet Port |
| PoE: | 8 ports (IEEE802.3at/af) (4Mbps is recommended per channel) |
| Network Function: | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, IP Search (Support Dahua IP camera, DVR, NVS, etc.), Easy4ip |
| Max. User Access: | 128 users |
| Smart Phone: | iPhone, iPad, Android |
| Interoperability: | ONVIF 2.4, CGI Conformant |
| Electrical | |
| Power Supply: | DC48V/1.5A |
| Power Consumption: | NVR: <7.5W (Without HDD), PoE: Max 25.5W for single port, 50W in total |
| Environmental | |
| Operating Conditions: | -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa |
| Construction | |
| Dimensions: | Compact 1U, 260mm×224.9mm×47.6mm |
| Weight: | 1.6kg(3.53 lb)(without HDD) |
| Certifications | |
| CE: | EN55032, EN55024, EN50130-4, EN60950-1 |
| FCC: | Part 15 Subpart B, ANSI C63.4-2014 |
| UL: | UL60950-1+CAN/CSA C22.2 No.60950-1 |
